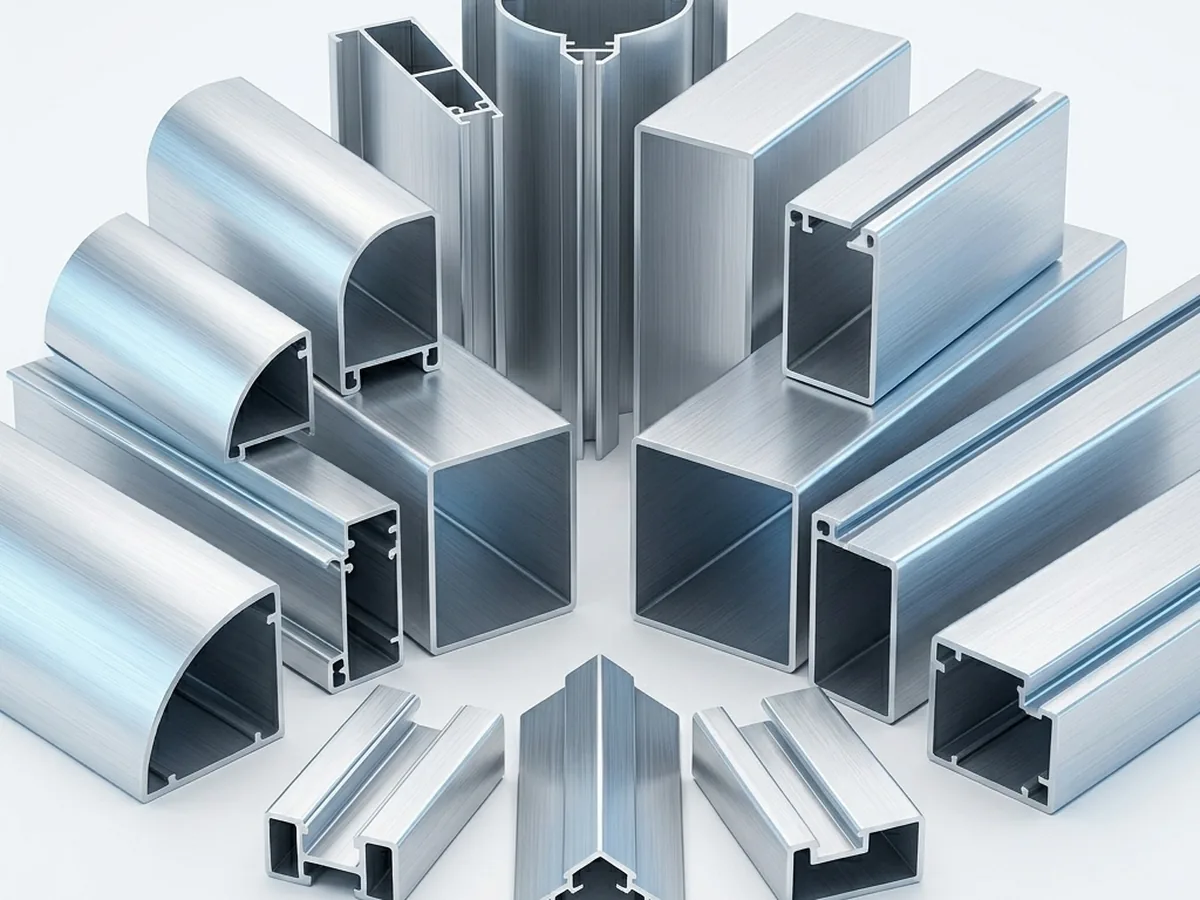

Pak Gusu aluminum profile systems are the structural backbone of the modular cleanroom; extruded profiles for hygienic wall, ceiling, and floor junctions.
Extruded profiles for wall, ceiling, and floor junctions.
Cove profiles to eliminate 90° corners and improve cleanability.
Anodized or powder-coated finish for corrosion resistance.
Fully integrated with Pak Gusu panels and doors.
Select the right profile system for your wall panels and cleanroom class.
The industry standard for pharmaceutical junctions.
Adjustable floor track for panel leveling.
Prefabricated internal/external corner pieces.
Standard aluminum coving for wall-ceiling and wall-wall connections.
See how Pak Gusu profiles ensure structural stability and hygiene.
Eliminates dead corners.
The R50 curve ensures no dust can accumulate in 90-degree corners, making it easy to wipe down and sterilize.
Explore where this system delivers the most value in real-world clean environments.
Essential for sterile manufacturing, our coving systems ensure no particle entrapment at critical wall-ceiling and wall-floor junctions, meeting GMP standards.
Corrosion-resistant anodized profiles designed to withstand frequent sterilization including VHP and UV exposure in BSL-2 and BSL-3 labs.
Anti-bacterial coatings and flush installation prevent germ buildup in surgical environments, meeting stringent healthcare standards.
Explore neighbouring industries and complementary cleanroom solutions.
Designed for ISO 5-8 cleanrooms with flush surfaces to prevent particle accumulation and simplify cleaning regiments.
The Pak Gusu aluminium profile system is the extruded structural framework of a modular cleanroom, sealing wall, ceiling and floor junctions into smooth, cleanable, crevice-free transitions. The figures below are standard, industry-typical options and ranges rather than fixed guarantees; final cross-sections, lengths and finishes are confirmed per project drawing.
| Alloy & temper | 6063-T5 architectural aluminium extrusion (other tempers on request) |
| Profile family | R50 coving, wall connectors / H-sections, top & base U-channel (floor track), cornices, 3D internal/external corner pieces, end caps |
| Coving radius options | Typically R50 (standard); R25 / R75 available on request for tighter or wider radii |
| Panel thickness compatibility | Standard grooves for 50 mm, 75 mm and 100 mm modular panels |
| Surface finish | Clear anodised (approx. 12–25 micron, e.g. ~15 micron standard) or polyester powder coat (approx. 60–80 micron); RAL/custom colours on request |
| Standard finish colour | Natural / clear anodised or white (RAL 9010 / 9016 typical); custom RAL on request |
| Sealing system | Gasket grooves for silicone or EPDM seals; neutral-cure silicone wet-seal option for airtight, pressure-cascade junctions |
| Fastening | Concealed clip / hidden-fastener engagement for a screw-free external face; stainless or zinc-plated fixings where exposed |
| Standard stock lengths | Typically supplied in ~3 m / 6 m mill lengths; cut-to-size to project dimensions on request |
| Wall thickness (section) | Approx. 1.2–2.0 mm typical depending on profile and structural role |
| Corner & junction pieces | Prefabricated moulded aluminium or PVC 2-way and 3-way corners for seamless radius junctions |
| Cleanability | Smooth, non-shedding surface; wipe-down and disinfectant compatible (e.g. IPA; tolerant of routine VHP / H2O2 cycles) |
| Corrosion resistance | Anodised / powder-coated finish suited to high-temperature, high-humidity GCC environments and frequent sanitisation |
| Cleanliness suitability | Designed to suit ISO 14644 Class 5–8 and EU-GMP Grade A–D crevice-free junction requirements (designed to suit, not a certification) |
| Accessories | End caps, clip bases, ceiling-grid connectors, service penetration trims, viewing-window and door-frame trims |
| Integration | Dimensionally matched to Pak Gusu cleanroom panels, doors, windows and ceiling grid for a single sealed envelope |
Two common ways to detail the wall-floor-ceiling junctions of a cleanroom. Coved (radius) profiles round the corner; box or flush profiles meet at a tight, sealed square edge. The right choice depends on the cleanliness class, regulatory pressure and budget.
| Aspect | Coved (R-radius) profile | Box / flush profile |
|---|---|---|
| Junction geometry | Continuous curved radius (e.g. R50) with no sharp internal corner | Square / flush junction sealed with gasket or wet silicone bead |
| Cleanability | Highest - nothing to trap dust or microbes; easy single-wipe sweep | Good when well sealed, but the inside corner is harder to wipe fully |
| Best-suited cleanliness class | Stricter ISO 5-7 / EU-GMP Grade A-C, sterile and aseptic areas | Less critical ISO 7-8 / Grade C-D, support corridors and gowning |
| Regulatory fit | Preferred detail under EU-GMP Annex 1 for crevice-free surfaces | Acceptable for many GMP support and non-sterile spaces |
| Visual & space | Softer rounded look; radius slightly reduces usable corner space | Crisp square lines; maximises clear floor and wall area |
| Installation | More corner pieces and trimming; slightly longer to fit | Faster, fewer parts; simpler at openings and penetrations |
| Relative cost | Higher material and labour per junction | Lower cost; economical for large areas of lower-grade space |
| Typical use | Sterile manufacturing, fill-finish, operating theatres, BSL labs | Warehousing-adjacent clean areas, change rooms, technical corridors |
We do not yet publish a downloadable PDF datasheet for this product. For exact profile cross-sections, coving radii, finish options and cut-to-size lengths matched to your panel thickness and cleanroom class, email info@pakgusu.com and we will send detailed profile drawings and a tailored specification for your project.
Get a free, project-specific quote — export pricing, lead times and installation options across the GCC.
Order coving, profiles, and accessories customized to your project dimensions. Get a fast quote today.
Get a QuoteCommon questions about cleanrooms, standards, cost and how Pak Gusu supplies and installs across the GCC.
Aluminum profiles form the structural framework of a modular cleanroom, connecting and supporting wall and ceiling panels while sealing wall, ceiling and floor junctions. Extruded coving, base channels and corner pieces create smooth, sealed, easy-to-clean transitions. Pak Gusu manufactures a full profile system in Pakistan and exports it integrated with panels and doors across the GCC.
Yes. Our profile system, with R50 coving and gasketed sealed junctions, is designed to meet EU-GMP Annex 1 and ISO 14644 requirements for crevice-free, cleanable surfaces. This suits SFDA, MOHAP, DHA and MoPH submissions across the GCC. Pak Gusu supplies validation-ready profiles and documentation to support your regulatory submission.
R50 coving is an aluminum profile with a 50mm radius curve replacing sharp 90-degree corners at wall, ceiling and floor junctions. The rounded surface prevents dust and microbial buildup and eases wipe-down and sterilization. It is the pharmaceutical standard under EU-GMP Annex 1, supplied by Pak Gusu for GMP-compliant cleanrooms exported across the Gulf.
We extrude profiles from 6063-T5 architectural alloy for a high strength-to-weight ratio, good corrosion resistance and a smooth finish. Anodized or powder-coated surfaces withstand VHP and routine cleaning agents. These finishes suit the heat and humidity of GCC pharmaceutical, hospital and laboratory cleanrooms in the UAE, Saudi Arabia, Qatar and beyond.
Yes. Our profile systems suit common modular panel thicknesses of 50mm, 75mm and 100mm. Profiles include gasket grooves for silicone or EPDM seals that keep junctions airtight and maintain room pressure cascades. Pak Gusu profiles integrate directly with our 50/75/100mm panels and doors for a fully sealed modular build shipped across the GCC.
Pak Gusu manufactures in Pakistan and exports cleanroom aluminum profiles, including R50 coving, base U-channels and 3D corners, on CIF or DAP Incoterms to ports such as Jebel Ali, Dammam and Hamad Port. On-site installation supervision is available at extra cost. Contact info@pakgusu.com for specifications and a GCC delivery quote.
