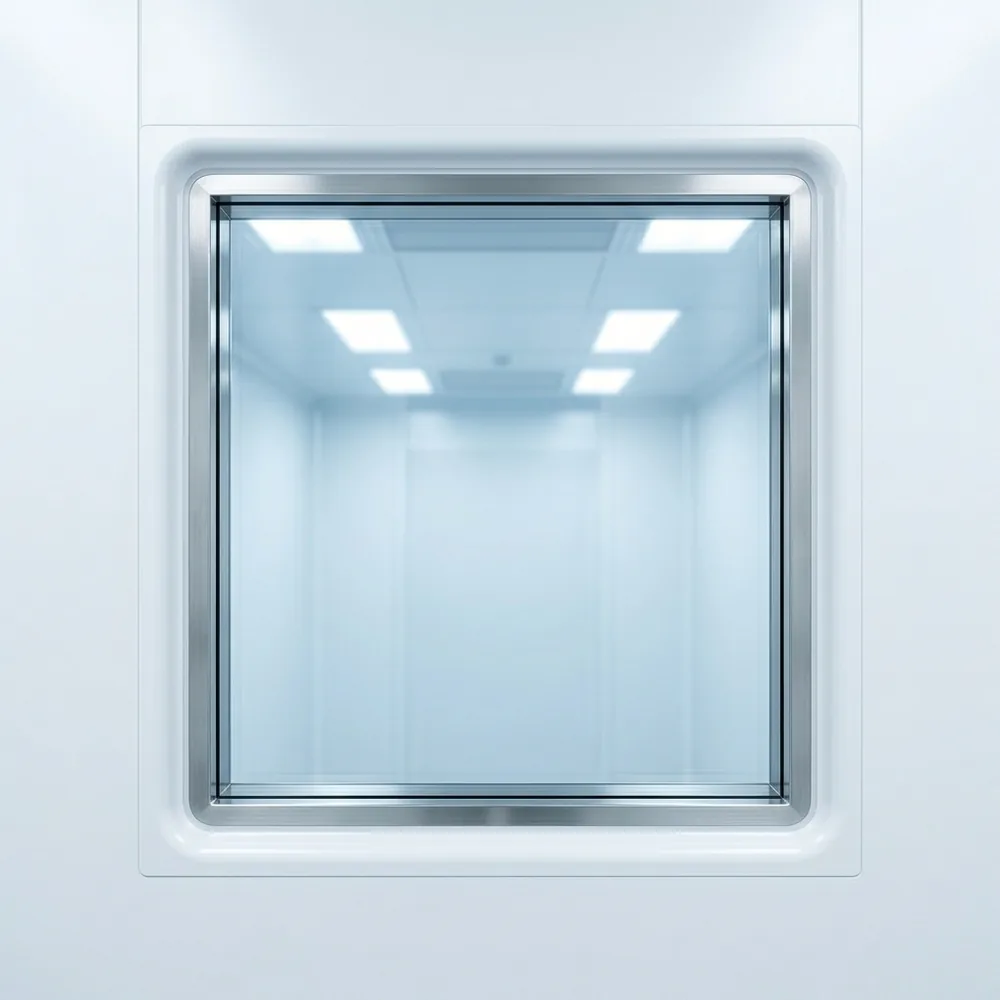

Pak Gusu cleanroom windows are fully flush with wall panels, enabling visibility between areas without compromising cleanliness.
Flush frames to eliminate ledges and dust traps.
Double-glazed safety glass for durability and safety.

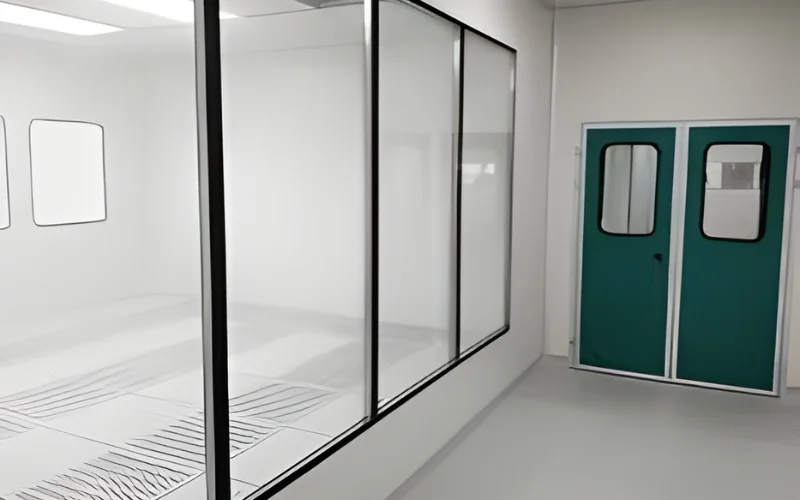

Option for integrated blinds or privacy solutions.
Compatible with positive and negative pressure rooms.
Match the product configuration to your cleanroom’s safety, ESD, and budget requirements.
Cost-effective solution for general facility monitoring.

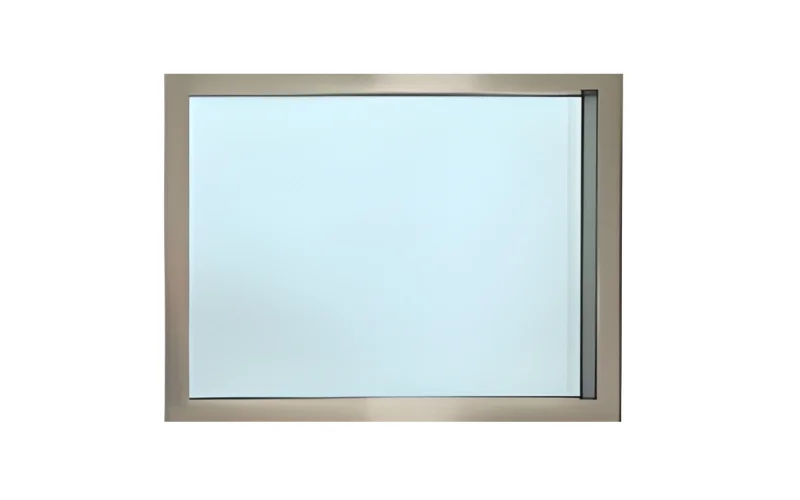

Enhanced protection for critical escape routes.

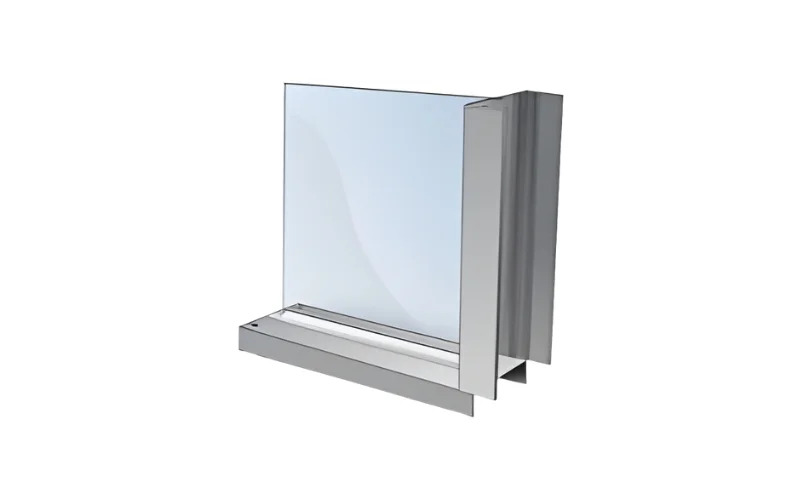

Designed for electronics and sensitive assembly.
Cost-effective panel for non-fire-rated, non-ESD areas.
Explore how each engineering choice improves cleaning, uptime, and long-term performance.
Minimizes cleaning cycles and usage.
Completely flush surfaces with no crevices for bacteria to hide. Resistant to VHP and aggressive cleaning agents used in GMP facilities.
Explore where this system delivers the most value in real-world clean environments.

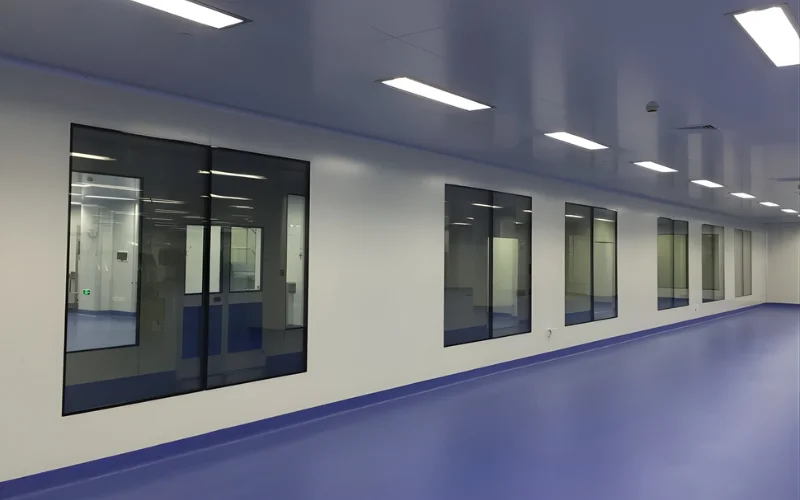

Flush-glazed windows prevent dust traps, supporting fast VHP sterilization cycles between batches.
Clear visibility ensures personnel safety during gowning and transfer protocols.
Large viewing panels allow supervision without entering the controlled zone.
Chemical resistant frames withstand frequent exposure to detergents.
Operating Theatres, ICU Isolation Rooms, Pharmacy compounding areas.
Wafer Fab, Lithography, Assembly Lines (ESD Protected).
High-care filling, Bottling, Microbiology testing labs.
BSL-2/3 Labs, University Research, QC areas.
Explore neighbouring industries and complementary cleanroom solutions.
Designed for ISO 5-8 cleanrooms with flush surfaces to prevent particle accumulation and simplify cleaning regiments.
The page currently presents windows through an interactive configurator and a feature console, but it has no structured technical specification table (the "See Specs" link even points to a #technical-specs anchor that does not yet exist). The specifications below give buyers and engineers a single reference for the standard options and typical ranges we manufacture to. All values are configurable to suit your room classification, pressure regime and wall-panel system.
| Window type | Fixed (non-opening) flush vision panel / view window |
| Glazing configuration | Single-glazed or double-glazed (sealed double-pane) — selected to suit pressure cascade and acoustic needs |
| Glass type options | Toughened (tempered) safety glass standard; laminated safety glass and fire-rated glass available on request |
| Glass thickness (typical) | 5-6 mm per pane single-glazed; 5+5 mm or 6+6 mm panes for double-glazed units |
| Double-glazed cavity | Sealed air gap typically 12-20 mm; integral magnetically-operated blinds can be housed within the cavity |
| Frame material | Extruded aluminium profile with chemically-resistant powder-coated or anodised finish; stainless steel framing on request |
| Mounting style | Flush / zero-sill (glass face level with wall panel) or framed bead-set; double-flush both faces available |
| Glazing / sealing system | Crevice-free coved or flush bead with silicone seal and EPDM/silicone gaskets for an airtight, wipe-clean joint |
| Panel-system compatibility | Designed to integrate with 50 mm and 75 mm sandwich wall panels and our aluminium profile system |
| Typical opening sizes | Made to order; common vision openings roughly 400 x 400 mm up to approx. 1200 x 1500 mm, larger by engineering review |
| Maximum single-pane size | Subject to glass thickness and structural review; larger areas achieved by mullions or multi-panel layouts |
| Pressure suitability | Sealed to maintain positive-pressure (aseptic) and negative-pressure (isolation) room boundaries |
| Cleanability | Smooth flush surfaces with no ledges or dust traps; suited to routine wipe-down and common cleanroom sporicidal agents, with VHP-compatible gasket/sealant material options available on request |
| Cleanliness-class suitability | Designed to suit ISO 14644-1 Class 5-8 and EU-GMP Grade A-D cleanroom zones |
| Optional configurations | Integrated blinds, tinted/frosted glass, anti-static (ESD) build and fire-rated assemblies |
| Finish / colour | RAL powder-coat colour options on aluminium framing to match wall-panel scheme |
Two decisions drive most of the spec: how many glass panes (single vs double-glazed) and how the window meets the wall (flush/zero-sill vs framed). The points below compare the practical trade-offs so you can match the window to the room.
| Aspect | Double-glazed / Flush (zero-sill) | Single-glazed / Framed |
|---|---|---|
| Cleanability & validation | Flush face is level with the wall panel — no ledge, easiest to wipe down and validate | Bead/frame creates a small reveal that needs extra attention during cleaning |
| Thermal & condensation | Sealed cavity reduces heat transfer and condensation risk in humid Gulf rooms | Single pane more prone to surface condensation across large temperature gradients |
| Acoustic performance | Double pane noticeably dampens noise between zones | Single pane offers basic separation only |
| Integrated blinds | Blinds can be sealed inside the cavity — touchless and dust-free | Blinds, if needed, must be mounted externally and cleaned separately |
| Pressure boundary | Well suited to demanding positive/negative pressure cascades | Suitable for lower-classification or non-critical pressure zones |
| Relative cost | Higher material and fabrication cost | Most economical option for general monitoring windows |
| Best-fit use | Aseptic suites, isolation rooms, ISO 5-7 / Grade A-C areas | Corridors, support areas and ISO 7-8 / Grade C-D zones on a budget |
We do not yet publish a downloadable PDF datasheet for this product. For exact frame profiles, glass build-ups, sealing details and a GA drawing matched to your wall-panel system and room classification, email info@pakgusu.com with your opening sizes, glazing preference and cleanliness class and we will prepare a detailed datasheet and shop drawing for your project.
Get a free, project-specific quote — export pricing, lead times and installation options across the GCC.
Our experts are ready to analyze your requirements and provide a detailed, compliant proposal for your facility.
Get a QuoteCommon questions about cleanrooms, standards, cost and how Pak Gusu supplies and installs across the GCC.
Yes. Pak Gusu manufactures flush, double-glazed and semi-flush cleanroom windows in Lahore, Pakistan and supplies them to all six GCC countries — Saudi Arabia, the UAE, Qatar, Kuwait, Bahrain and Oman — on CIF or DAP terms via Jebel Ali, Dammam and Hamad ports, sized to our panel systems for a crevice-free, cleanable finish. Installation supervision is available at extra cost.
Yes. Pak Gusu manufactures flush double-glazed cleanroom vision panels and exports across the GCC, shipping CIF or DAP to ports such as Jebel Ali, King Abdul Aziz Port Dammam and Hamad Port. On-site installation and supervision are available at extra cost to support your local fit-out contractor.
Our flush vision panels are designed to meet EU-GMP Annex 1 and ISO 14644-1 cleanliness requirements used across GCC pharmaceutical and healthcare projects. Crevice-free flush frames and double-glazed safety glass support Grade A-D and ISO 5-8 zones, keeping rooms easy to clean and validation-ready for SFDA or MOHAP submissions.
Flush mounting removes ledges and crevices where particles collect, so rooms clean and validate faster. Pak Gusu windows sit fully flush with wall panels, letting wipe-down and VHP cycles reach every edge. This gap-free finish supports the documentation and hygiene standards reviewed during SFDA, MOHAP, DHA or DoH facility assessments.
Pak Gusu offers single or double-glazed safety and tempered glass, with sealed gaskets that maintain airtight pressure boundaries in the GCC's hot, humid climate. Options include integrated blinds, tinting, fire-rated glass and anti-static configurations for ESD-sensitive electronics, each specified to your room's pressure, classification and safety requirements.
Yes. Properly sealed flush vision panels maintain integrity in positive-pressure aseptic suites and negative-pressure isolation rooms common in UAE and Saudi hospitals. Double glazing and sealed gaskets preserve the pressure cascades that protect product and staff, supporting DHA, DoH and MoPH healthcare cleanroom requirements.
Contact Pak Gusu at info@pakgusu.com with your sizes, glazing and classification needs. As a GUSU Purification technical partner, we fabricate flush double-glazed panels in Pakistan and export across the GCC under CIF or DAP Incoterms, with optional on-site installation and supervision available at additional cost.
