Pass Box Supplier in UAE & Saudi Arabia

Use Cases • Applications

Typical Applications

Explore where this system delivers the most value in real-world clean environments.

Sterile Manufacturing

Sterile transfer of active ingredients and vials into Grade A/B zones without breaking containment.

Class: ISO 5 / Grade A
Type: Dynamic Pass Box

Material Airlocks (MAL)

MALs utilize pass boxes to minimize personnel gowning requirements by transferring only materials.

Feature: Impact Resistant
Detail: Interlock Compatible

Packaging Lines

High-throughput transfer of packaging components into sterile areas via conveyor or hatch.

Benefit: Reduced Gowning
Efficiency: Fast Transfer

Decontamination

Pass boxes allow waste or tool removal without personnel exit, maintaining cleanliness.

Resistance: VHP Ready
Safety: No Sharp Edges

Healthcare & Hospitals

Operating Theatres, ICU Isolation Rooms, Pharmacy compounding areas.

Electronics & Semiconductor

Wafer Fab, Lithography, Assembly Lines (ESD Protected).

Food & Beverage

High-care filling, Bottling, Microbiology testing labs.

R&D Laboratories

BSL-2/3 Labs, University Research, QC areas.

Technical Reference

Technical Specifications

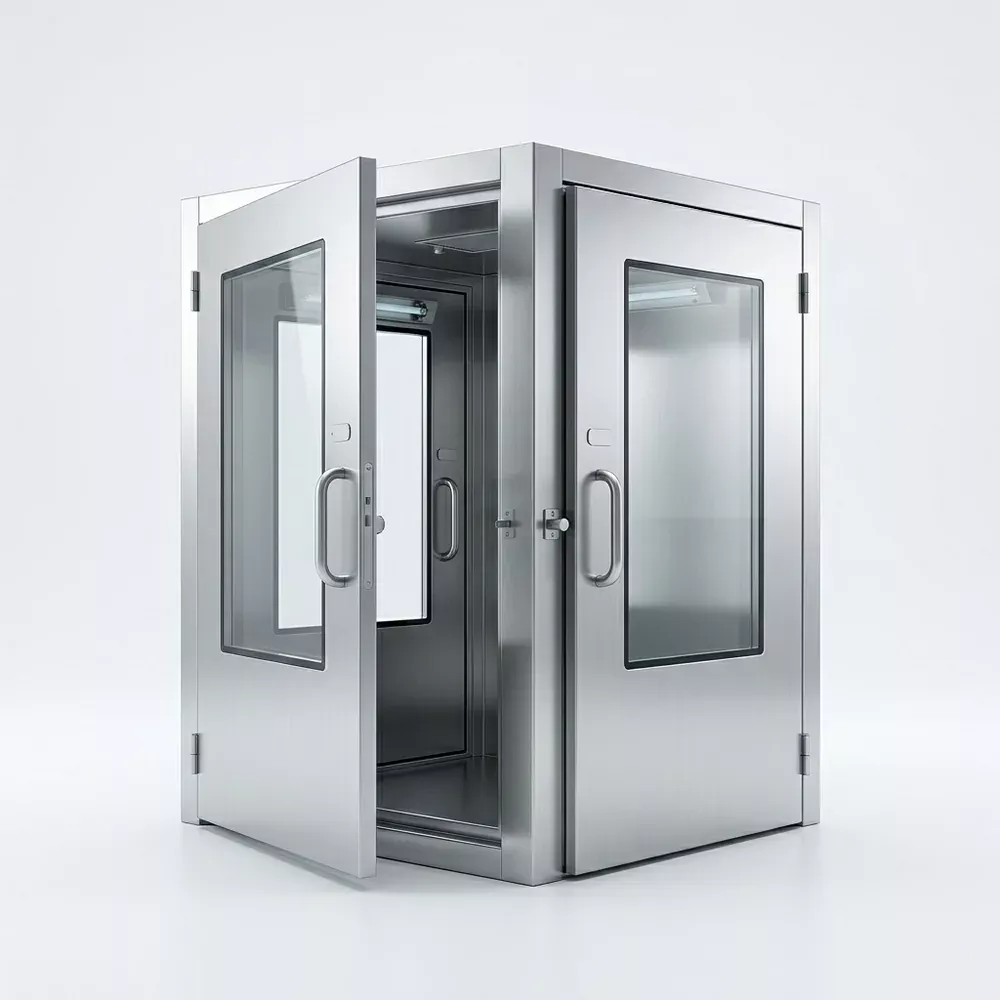

Stainless-steel cleanroom pass-through chamber (pass box)

Standard construction and performance options for our cleanroom pass-through chambers (pass boxes). Figures below are typical, configurable ranges — final dimensions, interlock type and filtration are built to suit your room grade and opening size. Share your wall thickness and transfer requirements and we will confirm an exact specification.

Chamber type	Static (mechanical) or Dynamic (HEPA-filtered) pass box; wall-mounted or floor-standing cart type
Construction	Double-wall, fully welded cabinet — typical wall thickness options 1.0–1.2 mm sheet over a rigid frame
Interior / exterior material	Stainless steel SS 304 standard; SS 316 / 316L option for corrosive or aseptic environments
Surface finish	Hairline / brushed (No.4) or matte bead-blasted interior; typical roughness in the Ra ≤ 0.8 µm range on request
Internal corners	Fully coved, radiused internal corners — lipless, crevice-free for easy wipe-down
Door / viewing panel	Hinged glazed door with safety/tempered glass and flush silicone or EPDM seal
Interlock system	Mechanical interlock standard; electromagnetic (electronic) interlock optional, with override and indicator lights
Sealing & gaskets	EPDM / silicone gaskets on both doors to support room pressure differentials and limit cross-contamination
Internal chamber sizes	Common openings approx. 450 × 450 × 450 mm to 800 × 800 × 800 mm; custom and cart sizes built to order
HEPA filtration (dynamic units)	H13/H14 HEPA filter with motor-blower, designed to deliver ISO 5 / Grade A air to the transferred surfaces
Air change / airflow (dynamic units)	High-frequency recirculating airflow over the chamber; configured to the chamber volume
Disinfection options	Optional germicidal UV-C lamp with interlocked timer for a kill step between transfers
Cleanliness suitability	Designed to suit ISO 14644 Class 5–8 and EU-GMP Grade A–D transfer points (per configuration)
Cleaning compatibility	Surfaces compatible with standard cleanroom disinfectants, IPA and vaporised hydrogen peroxide (VHP) regimes
Electrical (dynamic / UV units)	220–240 V / 50 Hz single phase typical; CE-style components available on request
Mounting / integration	Designed to integrate flush with 50, 75 or 100 mm cleanroom wall panels; flange/trim to suit partition

Key Features

Fully welded double-wall stainless cabinet with coved, lipless interior corners that leave no dust or microbe traps
SS 304 as standard with an SS 316/316L upgrade for aggressive cleaning agents, VHP and corrosive aseptic environments

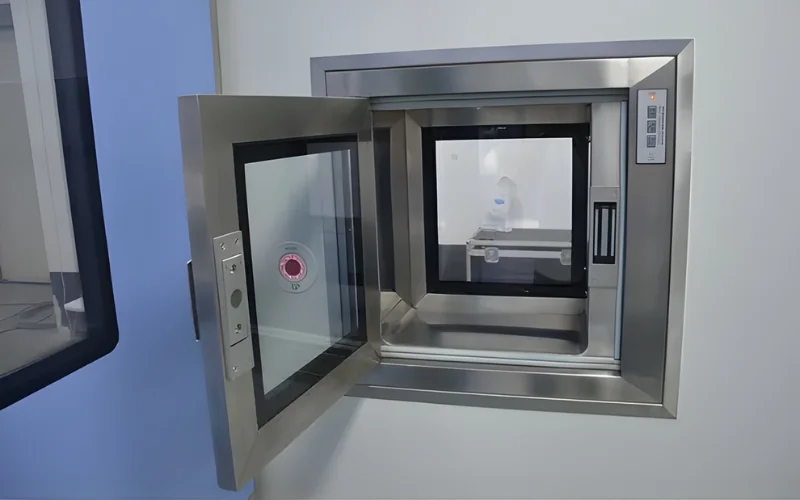

Two-door interlock prevents both doors opening at once, protecting the room-to-room pressure cascade during transfers
Choice of robust mechanical interlock or electromagnetic interlock with status indicator lights and emergency override

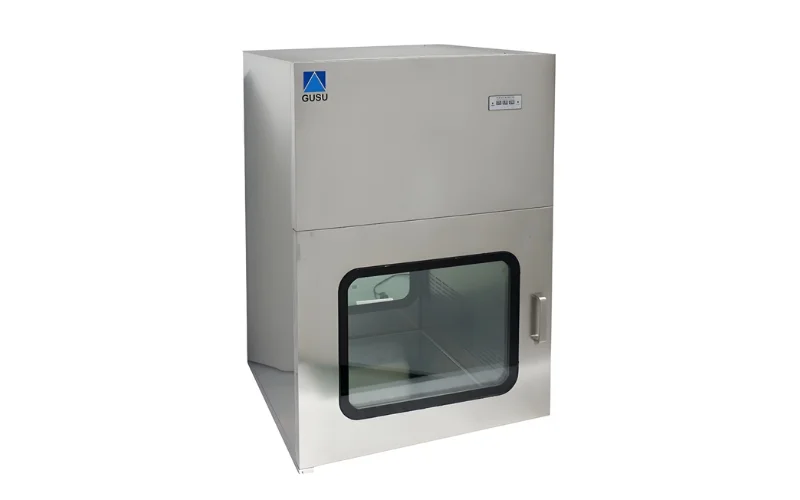

Dynamic (active) option adds H13/H14 HEPA filtration to decontaminate item surfaces before entry to Grade A/B zones
Optional interlocked UV-C germicidal lamp provides a disinfection kill step between transfers
Double-glazed safety-glass viewing door with flush EPDM/silicone seals for clear visibility and tight sealing

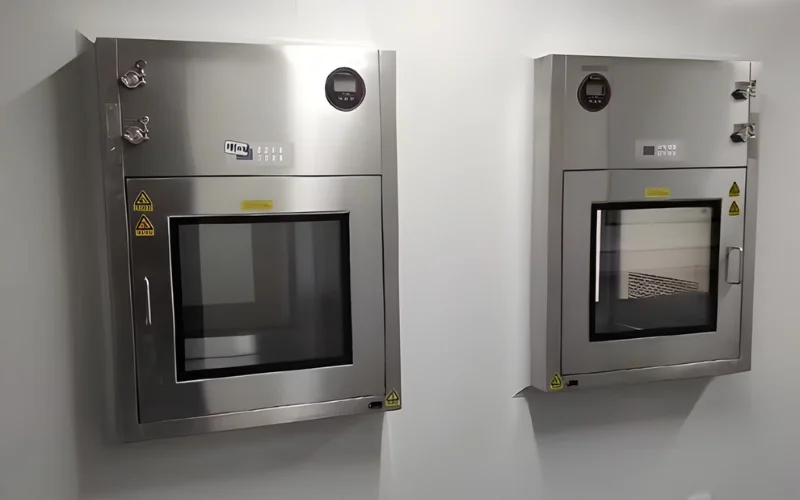

Built to integrate flush with 50, 75 or 100 mm cleanroom wall panels for a seamless, easy-to-clean wall interface
Custom internal sizes, wall-mounted or floor-standing cart configurations to suit trolleys and bulk material transfer

Choosing your pass box: static vs dynamic, and interlock type

Two decisions drive most pass box specifications: whether you need a simple sealed (static) box or an active HEPA-filtered (dynamic) one, and whether a mechanical or electromagnetic interlock suits your workflow. The table below compares them across the aspects buyers usually weigh.

Aspect	Static / Mechanical interlock	Dynamic (HEPA) / Electromagnetic interlock
Primary purpose	Sealed transfer between rooms of similar cleanliness; maintains pressure separation	Decontaminates item surfaces with filtered airflow before entry to a higher-grade or aseptic zone
Air handling	No fan or filter — a passive sealed cabinet	Motor-blower with H13/H14 HEPA, delivering ISO 5 / Grade A air over the goods
Typical cleanliness fit	ISO 7–8 / EU-GMP Grade C–D transfer points	ISO 5–6 / EU-GMP Grade A–B and sterile transfers
Interlock mechanism	Mechanical: simple rod/cam linkage, no power needed, very reliable	Electromagnetic: powered locks with indicator lights, timers and override; integrates with BMS
Power requirement	None for the box itself (UV lamp optional)	Requires power for blower, electronic interlock and optional UV
Relative cost & maintenance	Lower cost; minimal maintenance, no filter changes	Higher cost; periodic HEPA replacement and filter integrity checks
Best suited to	General material transfer, packaging, non-critical workflows	Aseptic manufacturing, high-risk transfers, and where timed/visual door control is required

We do not yet publish a downloadable PDF datasheet for our pass boxes. For a detailed specification sheet and a dimensioned drawing matched to your wall thickness, room grade and opening size, email info@pakgusu.com or request a quote — we will prepare one for your project.

Need this for your project?

Get a free, project-specific quote — export pricing, lead times and installation options across the GCC.

Request a Quote →

Answers

Frequently Asked Questions

Common questions about cleanrooms, standards, cost and how Pak Gusu supplies and installs across the GCC.

Are you a pass box (pass-through chamber) supplier in Saudi Arabia, the UAE, Kuwait and the GCC?

Yes. Pak Gusu manufactures static and dynamic pass boxes in Lahore, Pakistan and supplies them to all six GCC countries — Saudi Arabia, the UAE, Qatar, Kuwait, Bahrain and Oman — on CIF or DAP terms via Jebel Ali, Dammam and Hamad ports, with interlocks, UV options and HEPA-purged (dynamic) versions. We have no local Gulf office; installation supervision is available at extra cost.

Can Pak Gusu export pass-through chambers to the UAE, Saudi Arabia and across the GCC?

Yes. Pak Gusu manufactures static, dynamic and cart-type pass boxes and exports them across the Gulf, shipping CIF or DAP to ports such as Jebel Ali, King Abdul Aziz Port Dammam and Hamad Port. On-site installation and supervision can be arranged at extra cost for your fit-out team.

What is the difference between a static and dynamic pass box for GCC cleanrooms?

A static pass box is a sealed cabinet with interlocked doors for transfers between similar-grade rooms. A dynamic pass box adds HEPA filtration and airflow to decontaminate items entering higher-grade or aseptic areas. Pak Gusu supplies both for GCC pharmaceutical and healthcare facilities, with optional UV lamps for high-risk transfers.

Are your pass boxes designed to meet EU-GMP Annex 1 and ISO 14644 standards?

Yes. Pak Gusu pass boxes are designed to comply with EU-GMP Annex 1 and ISO 14644 requirements applied across GCC projects. Interlocked doors, radiused corners and HEPA-filtered airflow protect pressure cascades and reduce cross-contamination, making units validation-ready for SFDA, MOHAP or MoPH facility submissions.

Which stainless steel grade should Gulf pharmaceutical facilities specify for pass boxes?

Specify SS 304 for general transfers or SS 316 for corrosive, pharmaceutical and aseptic environments. Both give smooth, easily cleaned surfaces suited to the GCC's demanding GMP regimes. Pak Gusu fabricates chambers with radiused corners and lipless interiors in SS 304 or SS 316, compatible with VHP and aggressive cleaning agents.

Do dynamic pass boxes need HEPA filters for Grade A/B transfers in Gulf cleanrooms?

Static pass boxes need no HEPA filter, but dynamic units use HEPA filtration, typically H14, to clean material surfaces before entry into Grade A/B or ISO 5 zones. Pak Gusu supplies HEPA dynamic pass boxes with optional UV disinfection for sterile and high-risk applications across UAE, Saudi and Qatar facilities.

How do I order cleanroom pass boxes for a project in Qatar, Kuwait or Oman?

Contact Pak Gusu at info@pakgusu.com with your dimensions, grade and interlock preferences. As a GUSU Purification partner, we manufacture SS 304 and SS 316 static, dynamic and cart-type pass boxes in Pakistan and export across the GCC under CIF or DAP terms, with on-site installation available at extra cost.

Pass Boxes & Pass-Through Chambers for the GCC

Pass-Through Chambers – Material Transfer Solutions

Interlock Systems

Hygienic Design

Easy Cleaning

High-Risk Options

Chamber Variations

Static Pass Box

Dynamic Pass Box

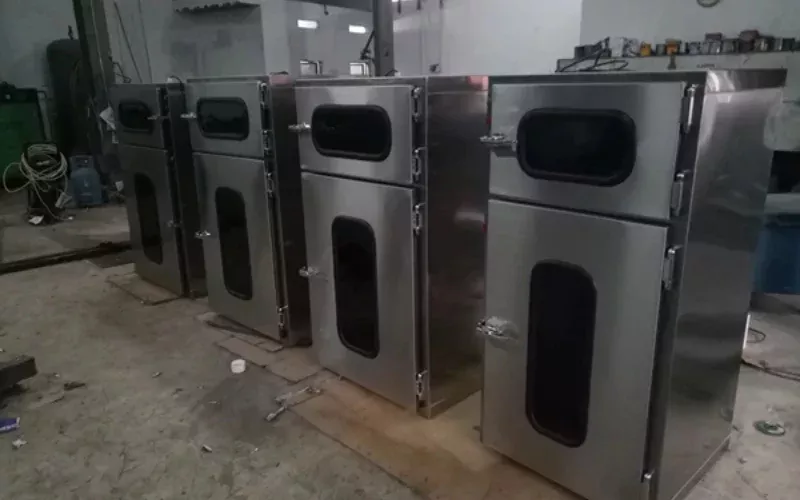

Cart Pass Through
