Cleanroom LED Lights Supplier

Use Cases • Applications

Typical Applications

Explore where this system delivers the most value in real-world clean environments.

Filling Lines

Teardrop lights ensure laminar flow over critical filling zones.

Class: ISO 5 / Grade A
Glass: Double Glazed, Flush

Visual Inspection

High-CRI illumination ensures accurate color rendering during visual inspection.

Feature: Impact Resistant
Detail: Interlock Compatible

Lithography Zones

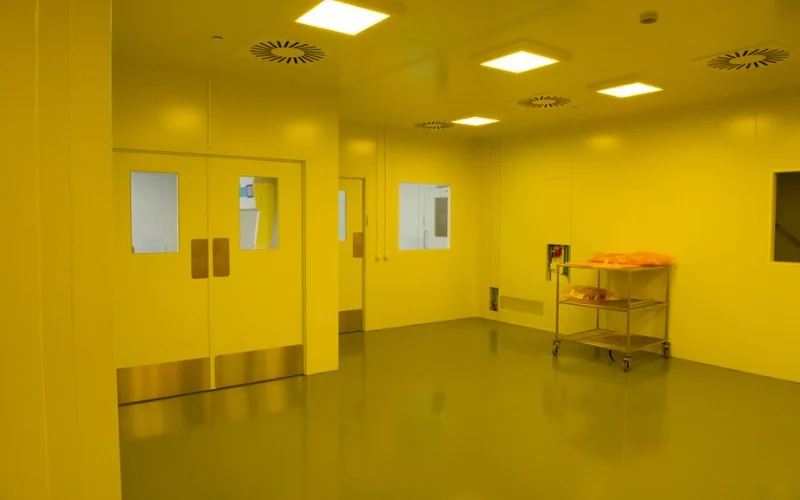

Yellow lighting protects photosensitive wafers without compromising visibility.

Benefit: Reduced Gowning
Glass: Safety Tempered

Decontamination

IP65 lighting withstands high-pressure washdowns and VHP cycles.

Resistance: Spor-Klenz Ready
Life: 15+ Years

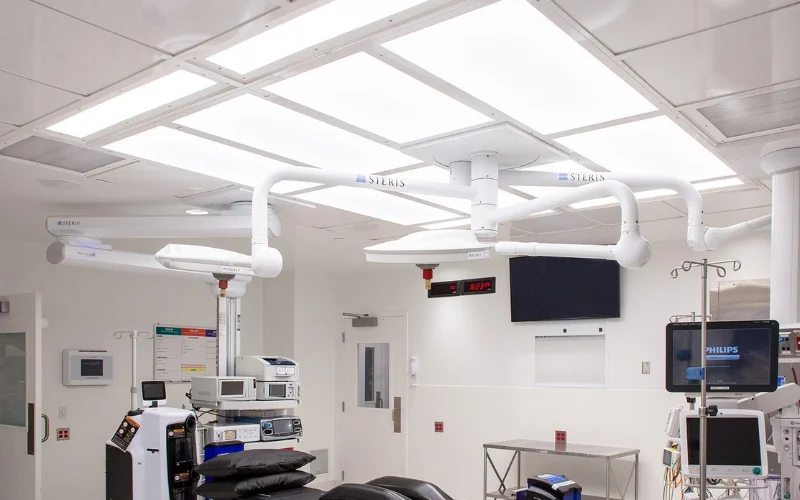

Healthcare & Hospitals

Operating Theatres, ICU Isolation Rooms, Pharmacy compounding areas.

Electronics & Semiconductor

Wafer Fab, Lithography, Assembly Lines (ESD Protected).

Food & Beverage

High-care filling, Bottling, Microbiology testing labs.

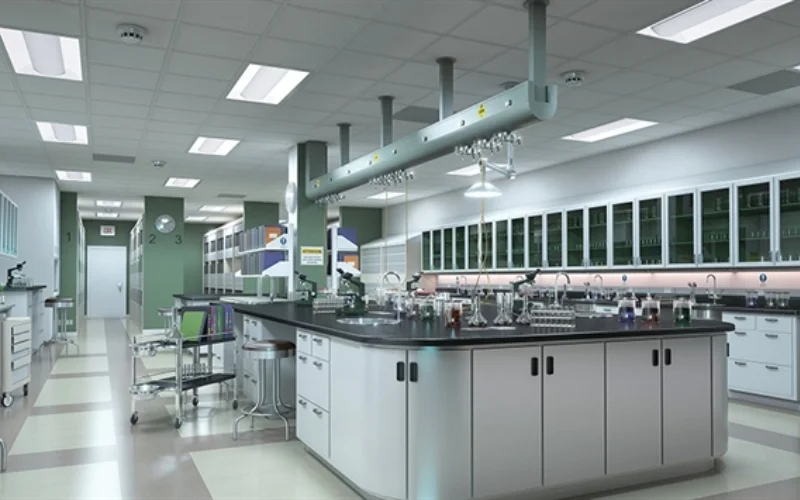

R&D Laboratories

BSL-2/3 Labs, University Research, QC areas.

Technical Reference

Technical Specifications

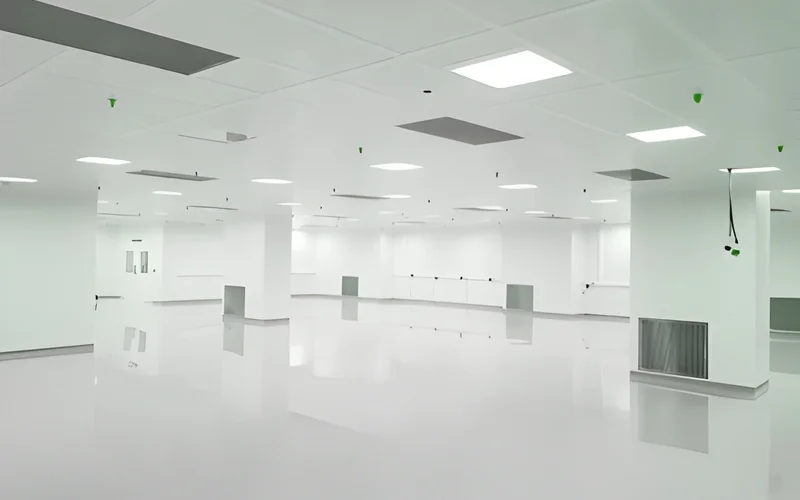

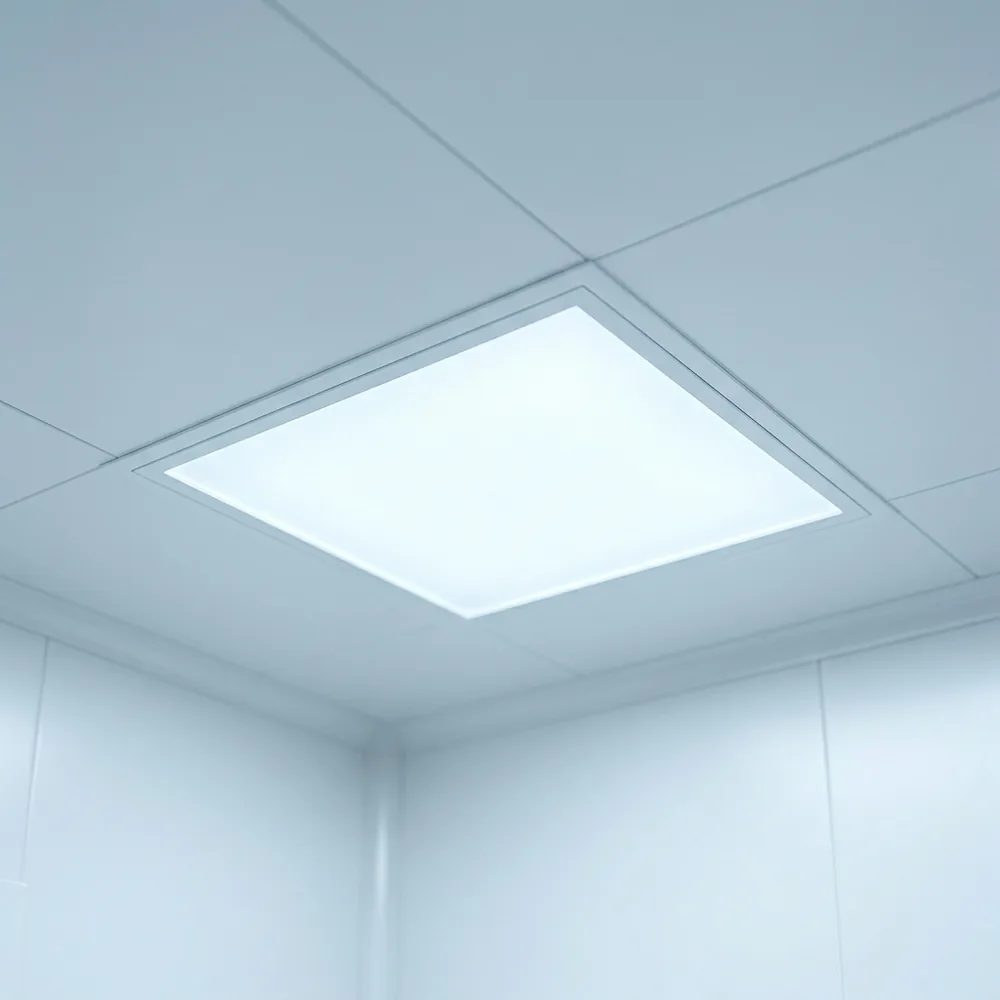

Flush sealed cleanroom LED ceiling panel

The page presents the three light variants, key features and applications interactively, but it has no consolidated specification table (the "See Specs" link points to a #technical-specs anchor that does not yet exist). The values below are standard, industry-typical options and ranges for sealed cleanroom LED luminaires — treat them as available configurations to be confirmed per project, not fixed guarantees.

Fixture types	Recessed flush panel, surface-mounted, and teardrop (sealed laminar-flow) profiles
Standard panel sizes	Typical 600 x 600 mm and 1200 x 600 mm modules; 1200 x 300 mm and custom sizes on request
Housing material	Powder-coated steel or extruded/anodised aluminium body with corrosion-resistant finish
Diffuser / lens	Opal or micro-prismatic polycarbonate (PC); tempered safety glass option for high-wash areas
Sealing / ingress protection	IP54 (recessed/general areas) up to IP65 (washdown and VHP zones) via gasketed, crevice-free housing
Power range	Approx. 18 W–45 W per fixture depending on size and output (typical 40 W for 600 x 600)
Luminous efficacy	Typically 90–130 lm/W; output configurable to target task lux levels (e.g. 300–1000+ lux)
Colour temperature (CCT)	3000K, 4000K or 6000K white; 570 nm amber/yellow option for photolithography areas
Colour rendering (CRI)	CRI Ra ≥ 80 standard; ≥ 90 high-CRI option for inspection and colour-critical tasks
Driver / input voltage	100–240 V AC, 50/60 Hz isolated LED driver; flicker-controlled and dimming (0–10V/DALI) optional
Rated lifespan	Typically up to ~50,000 hours (L70) under specified ambient conditions
Operating temperature	Aluminium heat-sink design for low surface heat; typical ambient range approx. 0–40°C
Cleanability / chemical resistance	Smooth, gap-free sealed face designed to withstand IPA, sporicidal agents and VHP decontamination cycles
Fire behaviour (framing)	Driver/wiring designed to suit recognised electrical safety practice; UL94 V-rated plastics available on request
Cleanliness suitability	Configurable for ISO 14644 Class 5–8 / EU-GMP Grade A–D areas (variant-dependent)
Mounting / integration	Clip-in for standard cleanroom ceiling grids, T-bar or walkable ceilings; sealed terminal/gland entry

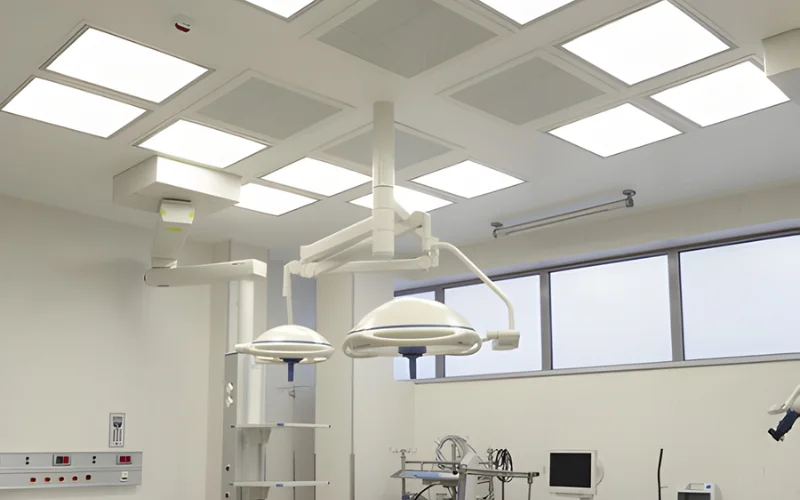

Key Features

Sealed, crevice-free housing with IP54 to IP65 options that resists particle ingress and supports high-pressure washdown and VHP decontamination
Flush, gap-free face that integrates smoothly with cleanroom ceiling panels for easy wiping and low particle accumulation
Three application-matched profiles: recessed panel, surface-mounted and aerodynamic teardrop for laminar-flow critical zones
Selectable colour temperature (3000K/4000K/6000K) plus 570 nm yellow option for photosensitive lithography areas
High-CRI option (Ra ≥ 90) for accurate colour rendering during visual inspection and colour-critical work
Energy-efficient LED modules (typically 90–130 lm/W) with aluminium heat-sink for low heat load on the controlled space
Long rated service life (up to ~50,000 hours L70) for extended maintenance intervals
Clip-in design compatible with standard ceiling grids and sealed gland entry for fast, leak-tight installation
Configurable to suit ISO 14644 Class 5–8 and EU-GMP Grade A–D environments, with dimming (0–10V/DALI) optional

Choosing your fixture: mounting style and sealing grade

Two decisions drive most cleanroom lighting selections: how the fixture mounts to the ceiling (recessed/teardrop vs surface-mounted) and how tightly it is sealed (IP54 vs IP65). Use the guide below to match the option to your room class and cleaning regime.

Aspect	Recessed (teardrop / sealed) + IP65	Surface-mounted + IP54
Ceiling integration	Sits flush within the ceiling grid for a smooth, gap-free surface	Mounts onto the ceiling face; small perimeter ledge where dust can settle
Airflow impact	Teardrop profile lets unidirectional laminar flow pass without turbulence — suits ISO 5 / Grade A	Protruding body can disturb critical laminar flow; better for turbulent-flow rooms
Sealing / ingress	IP65 is dust-tight and water-jet resistant for washdown and VHP zones	IP54 resists dust ingress and splashing — sufficient for dry, lower-class areas
Cleaning & decontamination	Crevice-free sealed face withstands sporicidal wipe-downs and VHP cycles	Adequate for routine wiping; not intended for high-pressure washdown
Typical room class	ISO 14644 Class 5–7 / EU-GMP Grade A–C critical and aseptic zones	ISO 14644 Class 7–8 / Grade C–D, gowning rooms, corridors and ancillary areas
Installation & ceiling type	Needs a compatible walkable/grid ceiling with cut-out provision; integrated at build stage	Fits most ceilings including retrofit; easier to add to existing rooms
Relative cost	Higher — sealed, flush and airflow-optimised construction	Lower — simpler housing and quicker, more flexible mounting

We do not yet publish a downloadable PDF datasheet for these fixtures. For exact wattage, lumen output, photometric data, IP rating and a dimensioned drawing matched to your ceiling type and ISO/GMP class, request a project-specific datasheet at info@pakgusu.com and our team will prepare it.

Need this for your project?

Get a free, project-specific quote — export pricing, lead times and installation options across the GCC.

Request a Quote →

Answers

Frequently Asked Questions

Common questions about cleanrooms, standards, cost and how Pak Gusu supplies and installs across the GCC.

What are cleanroom LED lights and how do they differ from normal LED panels?

Cleanroom LED lights are sealed, IP-rated fixtures built to prevent particle ingress and resist contamination in controlled environments. Unlike standard panels, they mount flush with the ceiling, leave no crevices for microbial buildup and withstand cleaning agents. Pak Gusu supplies teardrop, recessed and yellow variants designed to meet ISO 14644 and EU-GMP requirements, exported across the GCC.

What IP rating do cleanroom lights need for GMP areas in the Gulf?

Most GMP and cleanroom areas use IP65-rated luminaires, which are fully dust-tight and protected against water jets, allowing safe washdowns and VHP decontamination. The sealed gasketed housing stops particles entering or escaping. Pak Gusu offers IP65 recessed panels and teardrop fittings suited to ISO 5 through ISO 8 spaces for SFDA, MOHAP and DoH submissions.

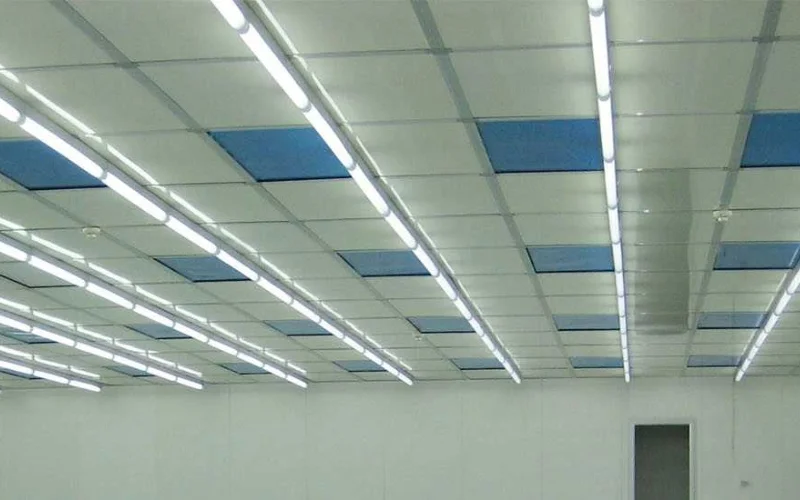

What is a teardrop cleanroom light used for?

A teardrop cleanroom light has a streamlined profile that lets unidirectional laminar airflow pass smoothly around it without turbulence or dead zones. This makes it ideal for ISO 5 / EU-GMP Grade A laminar-flow hoods, filling lines and critical aseptic zones. Pak Gusu teardrop fittings keep airflow clean over the most sensitive process areas in GCC pharmaceutical facilities.

Why do semiconductor and lithography cleanrooms use yellow lighting?

Yellow cleanroom lights emit around 570nm and filter out UV and blue wavelengths that would expose photosensitive photoresist during lithography. This protects wafers while keeping the area visible for operators. Pak Gusu supplies yellow, UV-safe fixtures for photolithography bays, plus high-CRI white lights for inspection, shipped to electronics and research cleanrooms across the Gulf.

Can cleanroom LED lights handle GMP cleaning and VHP decontamination?

Yes. Quality cleanroom LED fixtures use sealed, flush, crevice-free housings that resist sporicidal agents, high-pressure washdowns and vapor-phase hydrogen peroxide (VHP) cycles common in EU-GMP pharmaceutical facilities. Their IP65 sealing prevents moisture ingress during decontamination. Pak Gusu lights are built for repeated cleaning while maintaining low particle generation and long service life.

How do I order and ship cleanroom LED lights to the GCC?

Pak Gusu manufactures in Pakistan and exports cleanroom LED lights, including IP65 recessed panels, teardrop laminar-flow fittings and yellow lithography lights, on CIF or DAP terms to Jebel Ali, Dammam and Hamad Port. As a GUSU Purification technical partner, we offer flush-mount, energy-efficient fixtures with color-temperature options. Contact info@pakgusu.com for a GCC quote.
