Pak Gusu cleanroom doors provide reliable sealing, robustness, and high-frequency usage capability for demanding environments.
Smooth, non-porous surfaces for easy cleaning.
Swing and sliding variants for different traffic patterns.
Perimeter gaskets and drop seals for pressure control.
Options for interlocking, access control, and automatic operators.
Match the door configuration to your cleanroom’s traffic flow, pressure requirements, and safety protocols.
Reliable personnel access for most cleanroom classes.

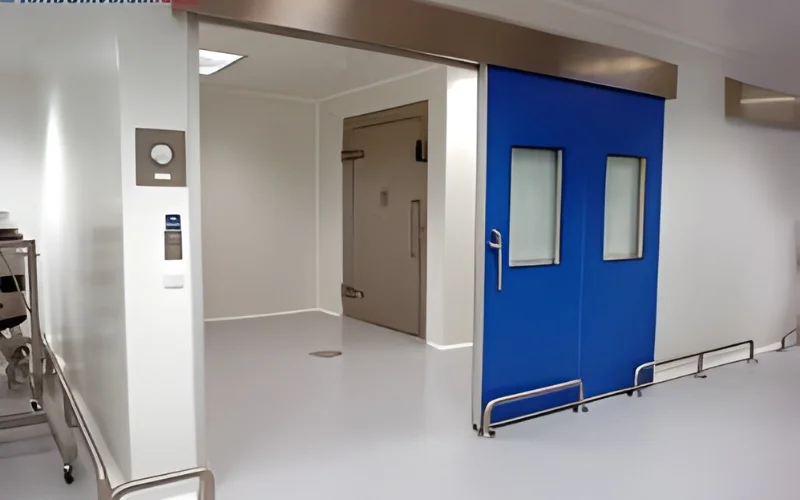

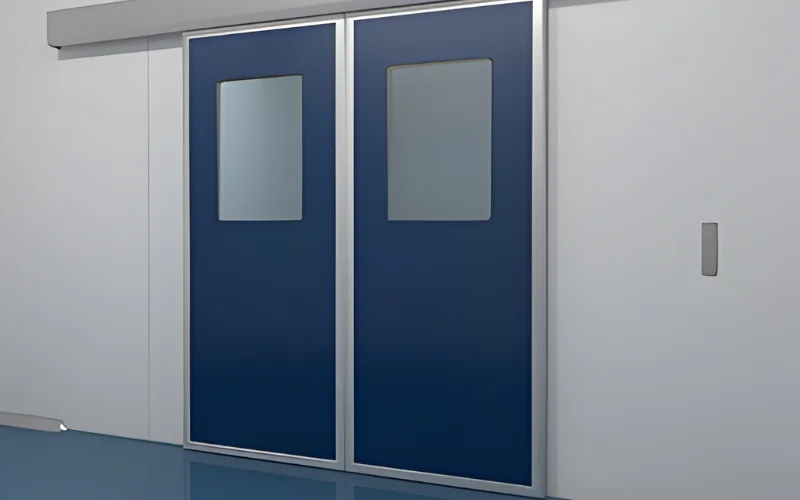

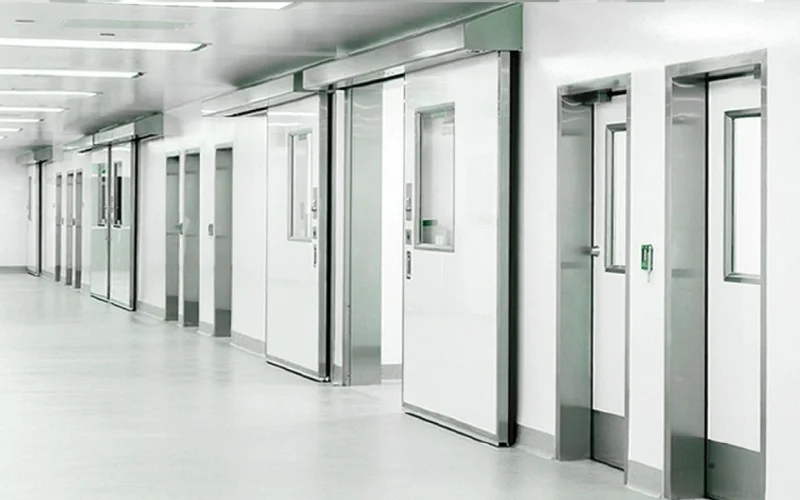

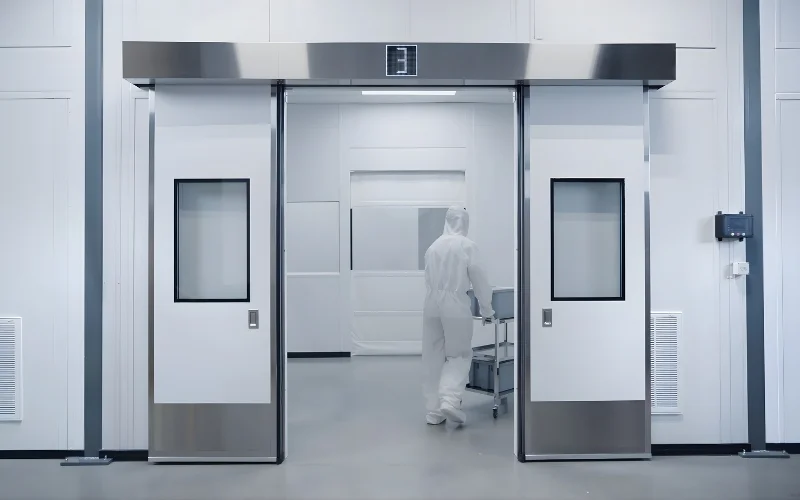

Ideal for high-traffic areas and limited space.
For material and personnel airlocks (MAL/PAL).

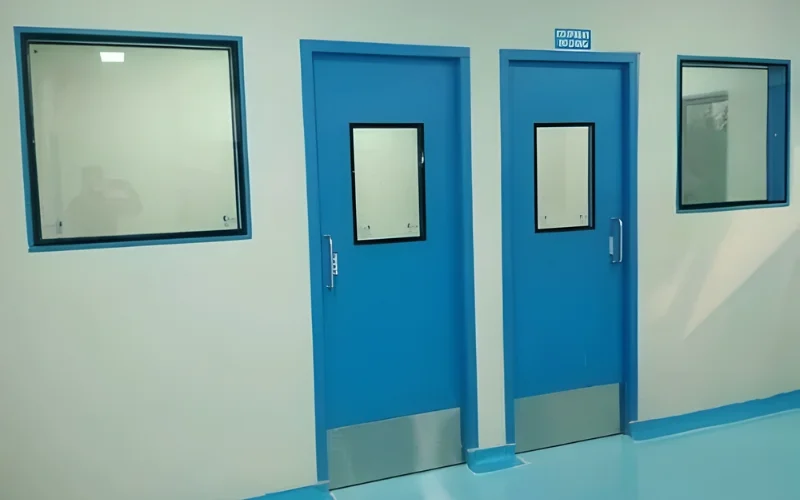

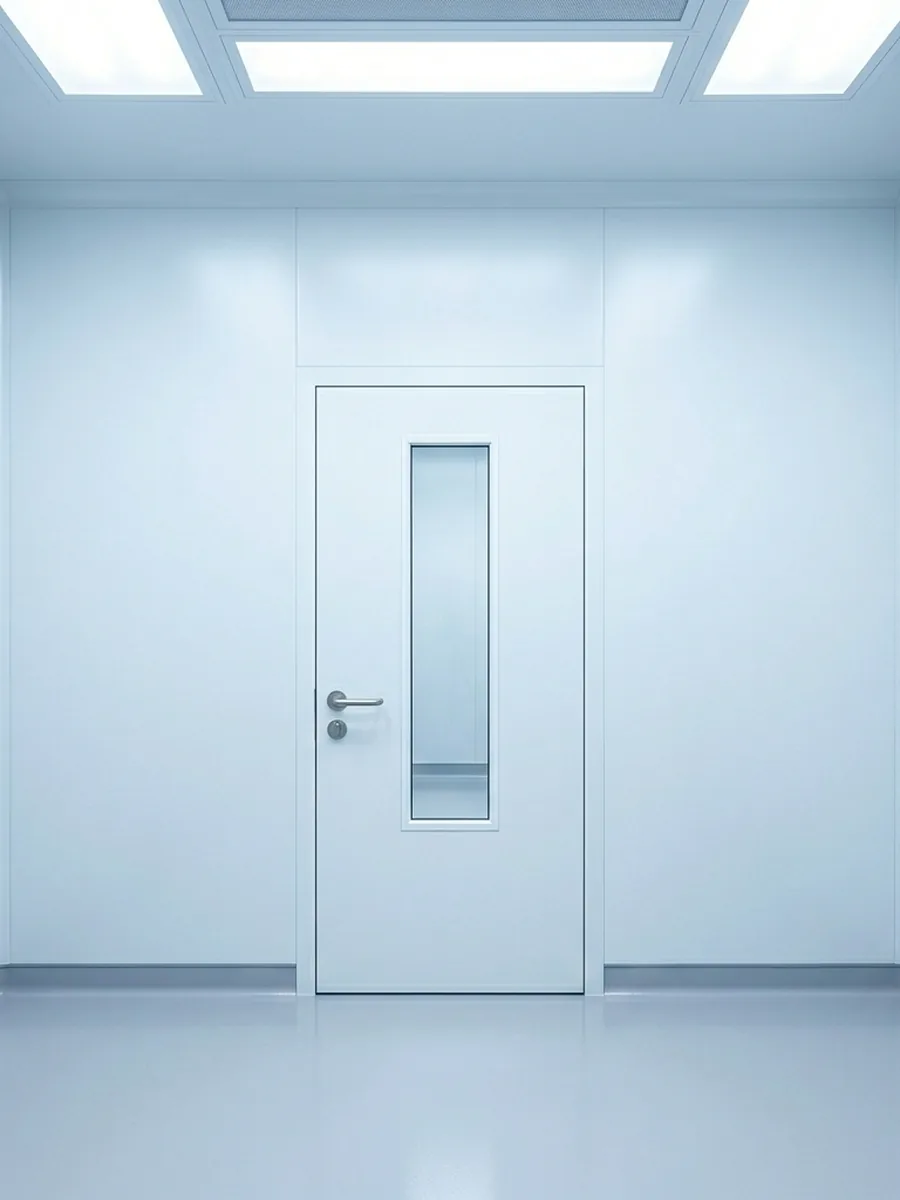

Standard airtight swing door for personnel access.
Explore how each engineering choice improves cleaning, uptime, and long-term performance.
Minimizes cleaning cycles and usage.
Completely flush surfaces with no crevices for bacteria to hide. Resistant to VHP and aggressive cleaning agents used in GMP facilities.
Explore where this system delivers the most value in real-world clean environments.
Flush door surfaces prevent dust traps, supporting fast VHP sterilization cycles between batches.

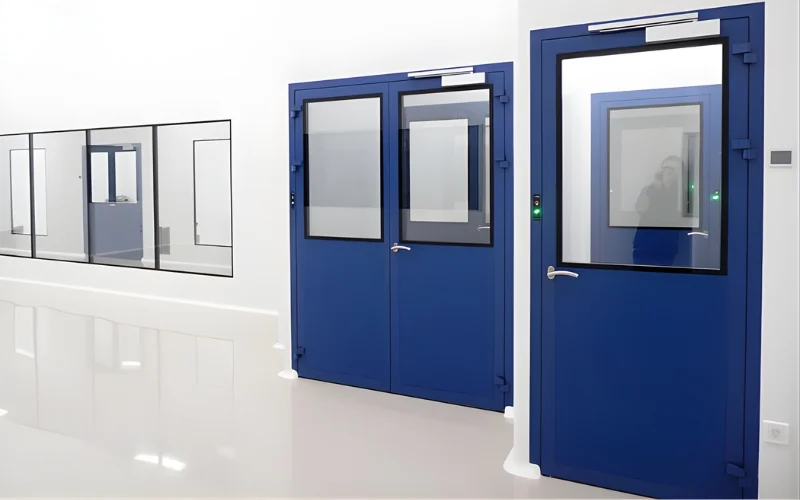

Secure interlocking ensures pressure cascades are maintained during gowning and transfer protocols.

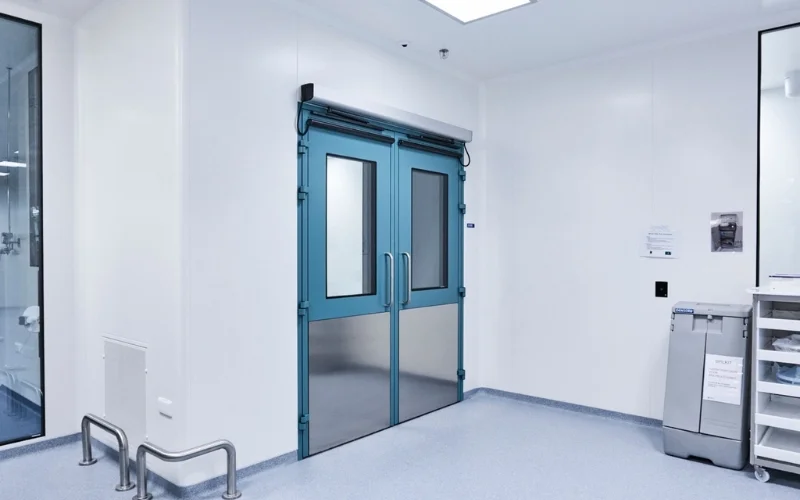

Automated doors allow hands-free transfer of materials entering the controlled zone.

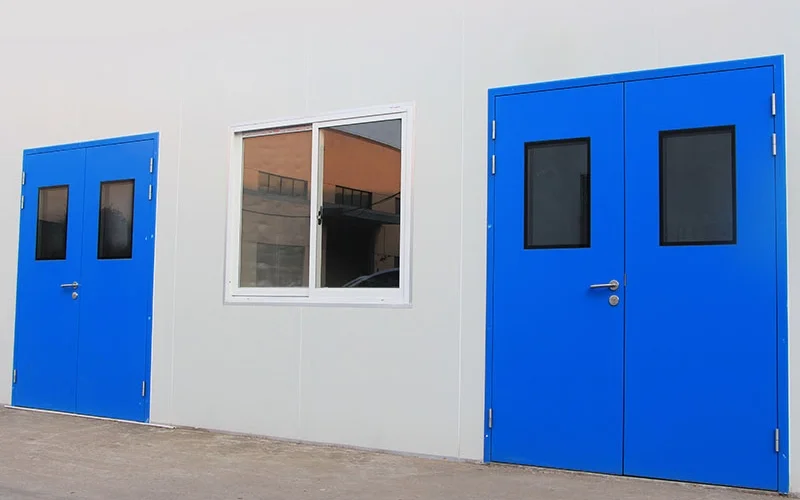

Chemical resistant leaf and frame withstand frequent exposure to detergents.

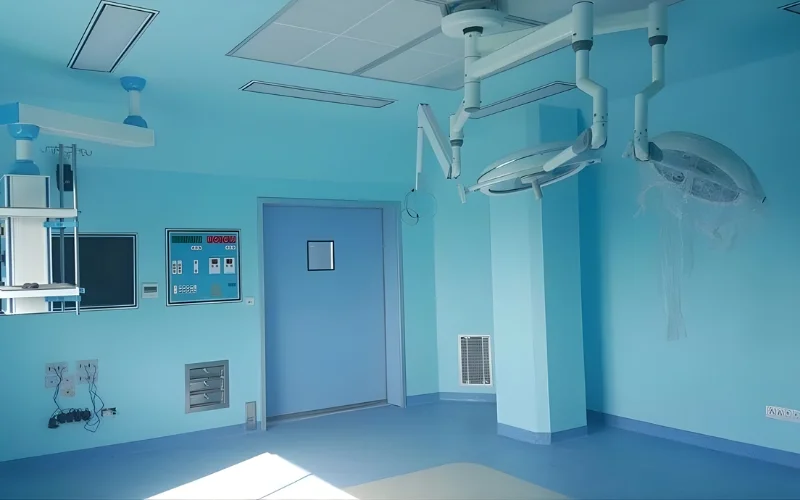

Operating Theatres, ICU Isolation Rooms, Pharmacy compounding areas.
Wafer Fab, Lithography, Assembly Lines (ESD Protected).
High-care filling, Bottling, Microbiology testing labs.
BSL-2/3 Labs, University Research, QC areas.
Explore neighbouring industries and complementary cleanroom solutions.
Designed for ISO 5-8 cleanrooms with flush surfaces to prevent particle accumulation and simplify cleaning regiments.
Our experts are ready to specify the right door system for your traffic, pressure, and compliance needs.
Get a Quote
The page presents door types, features and applications interactively but has no consolidated technical specification table. The specs below summarise standard, industry-typical options and ranges for Pak Gusu cleanroom doors. Final dimensions, materials and hardware are configured per project, so treat these as available options rather than fixed guarantees.
| Door types | Single-leaf swing (hinged), double-leaf swing, manual or automatic sliding, and two-door interlock airlock sets (PAL/MAL) |
| Leaf construction | Flush, double-skin leaf with rigid honeycomb or insulated core, fully welded edges and no exposed fasteners |
| Leaf / facing material | Galvanized steel (powder-coated, typ. RAL 9010/9003) or stainless steel SS304; SS316 available for aggressive or coastal environments |
| Leaf thickness | Typically 45-50 mm (door leaf); coordinated with wall panel thickness |
| Frame | Flush hygienic frame in galvanized/powder-coated steel or stainless steel, designed to integrate with 50 / 75 / 100 mm modular cleanroom panels |
| Single-leaf clear opening (typical range) | Width approx. 700-1200 mm, height approx. 2000-2400 mm (made to order) |
| Double-leaf clear opening (typical range) | Width approx. 1400-2000 mm for equipment and trolley access |

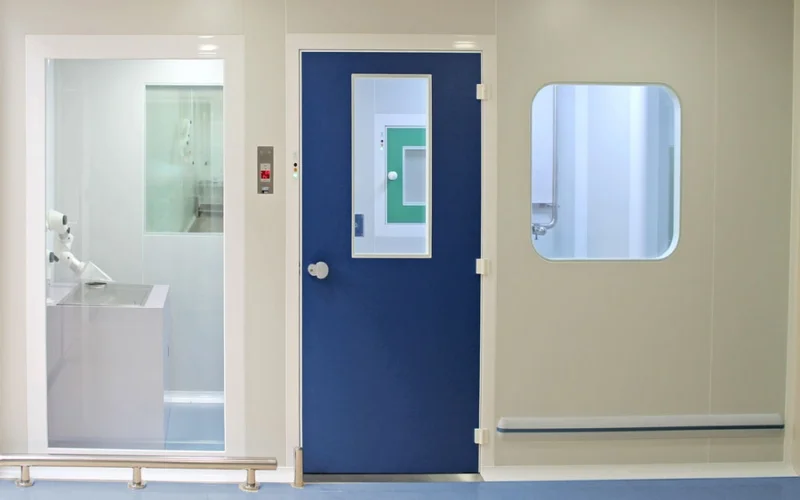

| Vision panel | Optional flush double-glazed tempered glass window; sizes and position to suit; fully sealed, ledge-free |
| Sealing | Perimeter compression gaskets with automatic drop seal at threshold for pressure-cascade control and low air leakage |
| Hardware | Stainless-steel hinges or sliding track, lever/pull handle, mortice or hook lock; push plates or touchless sensors optional |
| Automation & control options | Automatic operators, electromagnetic interlocks, access control, indicator lamps and emergency-release override |
| Surface finish & cleanability | Smooth, non-porous, flush surfaces; resistant to routine disinfectants and VHP/H2O2 vapour decontamination |
| Fire-rated option | Fire-rated leaf and frame available on request (rating designed to suit project requirement); standard doors are non-rated |
| Cleanliness suitability | Designed to suit ISO 14644 Class 5-9 and EU-GMP Grade A-D pressure-cascade environments |
| Installation | Flush-fit into modular partition or block/masonry openings; installation/commissioning supervision available at extra cost |
| Manufacture & supply | Made in Pakistan with GUSU (China) technology; exported to the GCC CIF/DAP (Jebel Ali, Dammam, Hamad Port) |
The right door depends on traffic, floor space, pressure control and budget. Use this guide to narrow the configuration, then ask us to confirm sizes and hardware for your layout.
| Aspect | Swing (hinged) | Sliding |
|---|---|---|
| Floor space & swing clearance | Needs clear arc in front of the leaf; can obstruct narrow corridors | Slides along the wall, saving floor space in tight or busy areas |
| Traffic frequency | Best for low-to-moderate personnel traffic | Suited to high-traffic and automated material flow |
| Sealing & pressure control | Excellent perimeter seal with gasket + drop seal; simple and proven | Good seal achievable, but mechanism is more complex to maintain |
| Hands-free / touchless operation | Optional auto operator; manual push/pull is typical | Naturally suits automatic, touchless and sensor-driven operation |
| Relative cost & maintenance | Lower cost, fewer moving parts, easy to service | Higher cost; track and operator require periodic maintenance |
| Single-leaf use | Ideal for personnel entry in gowning and process rooms | Compact single-slide for personnel where space is limited |
| Double-leaf use | Wider opening for trolleys, pallets and equipment | Bi-parting slide gives a wide clear opening with minimal swing space |
| Airlock / interlock fit | Common in swing-pair PAL/MAL with electromagnetic interlock | Used where space or automation favours sliding interlocked sets |
We do not yet publish downloadable PDF datasheets for cleanroom doors. For a detailed specification sheet, shop drawing or door schedule matched to your openings, materials and access requirements, contact us at info@pakgusu.com or request a quote and our team will prepare it for your project.
Get a free, project-specific quote — export pricing, lead times and installation options across the GCC.
Common questions about cleanrooms, standards, cost and how Pak Gusu supplies and installs across the GCC.
Yes. Pak Gusu manufactures hinged and sliding cleanroom doors in Lahore, Pakistan and supplies them to all six GCC countries — Saudi Arabia, the UAE, Qatar, Kuwait, Bahrain and Oman — on CIF or DAP terms via Jebel Ali, Dammam and Hamad ports, with vision panels, interlocks and flush finishes matched to our panel systems. Installation supervision is available at extra cost.
Yes. Pak Gusu manufactures hermetic, swing, sliding and interlocking cleanroom doors and exports across the GCC, shipping CIF or DAP to Jebel Ali, King Abdul Aziz Port Dammam and Hamad Port. We serve UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman, with installation and commissioning supervision available at extra cost.
Our doors are designed to meet EU-GMP Annex 1 and ISO 14644 requirements referenced by Saudi SFDA, UAE MOHAP, DHA, DoH and Qatar MoPH. Flush leaves, perimeter gaskets and drop seals maintain pressure cascades for Grade A-D zones. We provide documentation to support your validation and regulatory submission.
Swing doors are the cost-effective standard for personnel access in most cleanroom classes, while sliding doors save floor space and suit high-traffic, automated Gulf facilities. We also offer interlocking airlock systems. Selection depends on traffic flow, available space, pressure requirements and whether touchless or hands-free operation is preferred.
Interlocking doors prevent both airlock leaves opening at once, preserving the pressure cascade between a cleanroom and adjacent areas in personnel and material airlocks (PAL/MAL). Combined with perimeter gaskets and automatic drop seals, our doors keep contamination out during gowning and transfer, supporting GMP and ISO 14644 environments across the Gulf.
Doors use galvanized or powder-coated steel or stainless-steel SS304 leaves and frames, with smooth, non-porous surfaces that resist VHP and aggressive detergents. Stainless steel offers high corrosion resistance suited to humid Gulf coastal environments. Flush hygienic surfaces are engineered for long service life in demanding GMP and laboratory cleanrooms.
We quote lead times per project based on door type, material and access options, and ship from Pakistan on CIF or DAP Incoterms to Gulf ports including Jebel Ali, Dammam and Hamad Port. Doors arrive with airtight seals, interlocks and operators specified; on-site installation supervision is available at additional cost.
