Cleanroom HVAC & HEPA Design for the Gulf Desert Climate

Why the Gulf Desert Changes Cleanroom HVAC Design

Standard cleanroom HVAC assumes moderate outdoor air. The Gulf does not provide it. Designers in Saudi Arabia, the UAE, Qatar and across the GCC face three simultaneous loads that a temperate-climate design never sees together: sustained extreme heat, sharp humidity swings, and persistent fine dust and sand. Each one attacks a different part of the air-handling system, so the HVAC must be engineered as an integrated response rather than a catalogue selection.

The consequences of ignoring climate are practical and expensive. Undersized cooling cannot hold the temperature setpoint during peak summer afternoons, so particle counts and operator comfort both suffer. Poor dehumidification lets moisture condense on cold surfaces, feeding microbial growth in pharmaceutical and nutraceutical rooms. And unfiltered desert dust blinds HEPA filters in months instead of years, driving up pressure drop, fan energy and replacement cost.

A cleanroom that is correctly sized for these factors stays compliant year-round and protects the HEPA investment. One that is not will chase faults every summer. See our overview of cleanroom solutions for the UAE and Saudi Arabia for region-specific context.

Multi-Stage Filtration: Protecting HEPA in a Dusty Climate

HEPA filters are the final barrier, not the workhorse. In a desert environment, the strategy is to remove as much coarse and fine dust as possible *before* air reaches the HEPA stage, so the expensive terminal filters last for years rather than months. This is achieved with a graded filtration train where each stage captures progressively smaller particles.

A typical Gulf pre-filtration train

• Stage 1 — Coarse pre-filter (G3/G4): A washable or replaceable panel at the fresh-air intake catches sand, insects and large debris. In dusty regions this is often duplicated or upsized.
• Stage 2 — Fine filter (F7 to F9 / ePM1): Removes the fine respirable dust that desert air carries in abundance, the particle range that would otherwise clog HEPA media.

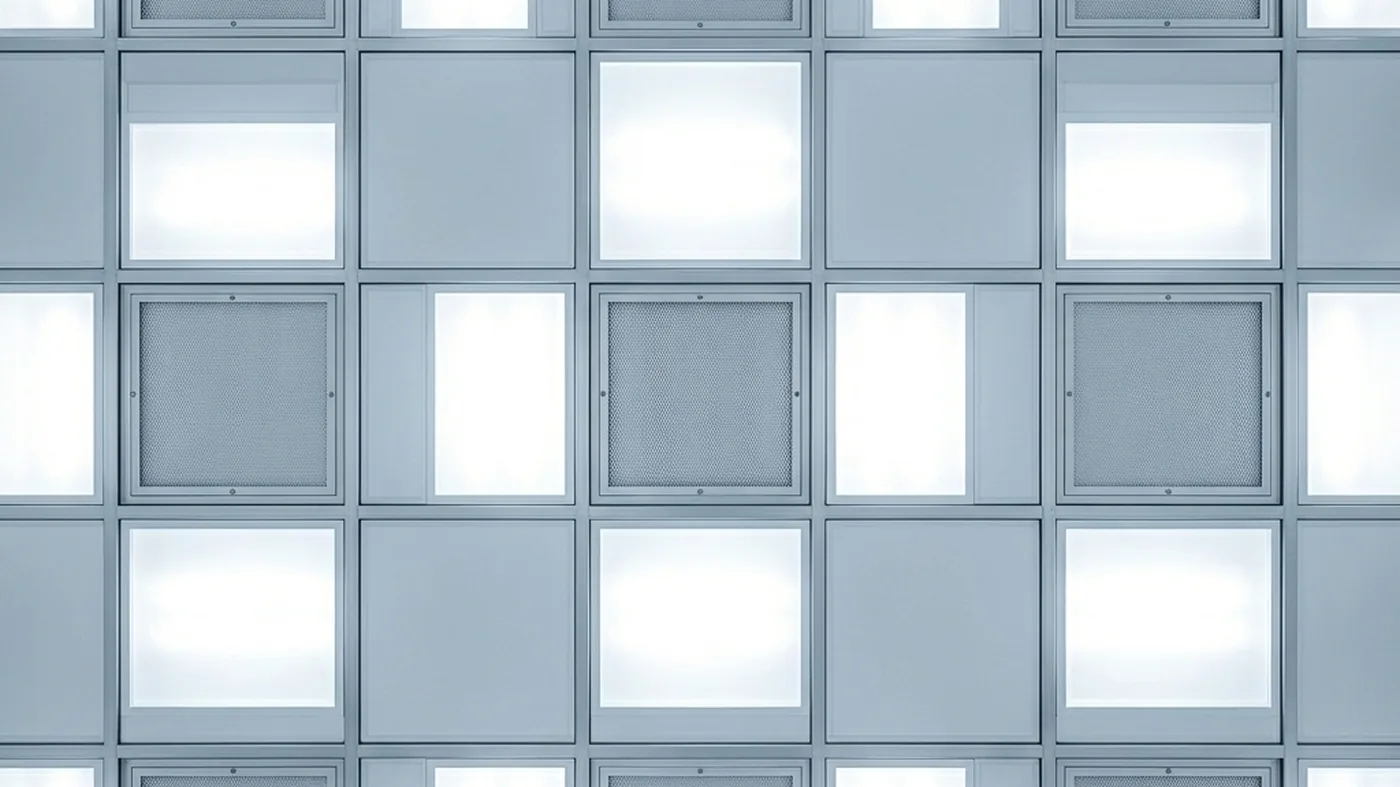

• Stage 3 — HEPA (H13/H14): Terminal filters at the ceiling, rated 99.95% to 99.995% efficient at the most penetrating particle size, delivering the final ISO-class air.
• Stage 4 — ULPA (U15+), where required: Only for the most demanding ISO 3-4 applications.

Monitoring differential pressure across each filter bank is essential. A rising pressure drop signals dust loading and tells the maintenance team when to change a stage before it starves airflow or pushes the fan into an inefficient operating point. In the Gulf, the pre-filter change interval is typically much shorter than the HEPA interval by design — that is the system working as intended.

Our cleanroom HVAC and filtration products and full installation and validation services are designed to meet these graded-filtration requirements for export across the GCC.

Air Changes Per Hour by ISO Class

Air changes per hour (ACH) describe how many times the full volume of a room is replaced with filtered air every hour. More air changes dilute and sweep away particles faster, so cleaner classes need dramatically higher ACH. The figures below are general industry design guidance — the actual rate is confirmed during validation against measured particle counts, not assumed.

There are two airflow philosophies. Non-unidirectional (turbulent) flow uses ceiling HEPA terminals and is expressed in ACH; it suits ISO 7 and ISO 8 rooms. Unidirectional (laminar) flow uses a wall-to-wall or large HEPA ceiling delivering a uniform velocity (commonly around 0.45 m/s); for these the meaningful metric is air velocity and percentage HEPA ceiling coverage rather than a simple ACH count, though an equivalent ACH is often quoted.

In the desert, ACH interacts directly with energy. Every air change is conditioned air that has been cooled and dehumidified, so over-specifying ACH wastes significant cooling energy year-round. The goal is the *lowest* ACH that reliably holds the particle count — established through recovery testing during validation. Right-sizing here is one of the largest levers on lifetime running cost. We break down typical figures in our cleanroom cost guide for the UAE and Saudi Arabia.

Pressure Cascades and Humidity Control

A pressure cascade keeps contamination moving in one direction. By holding each cleaner room at a higher pressure than its dirtier neighbour, air always leaks *out* of the clean space and never *in*, so dust and microbes cannot migrate against the gradient. A differential of roughly 10-15 Pa between adjacent classified grades is a common design target, with airlocks and gowning rooms forming the stepped transitions.

The direction of the cascade depends on what you are protecting:

• Positive pressure (clean room higher) protects the *product* — standard for sterile pharmaceutical, nutraceutical and electronics rooms.
• Negative pressure (room lower) protects the *people and environment* — used for handling hazardous, potent or biological materials so nothing escapes.
• Cascading airlocks bridge the two regimes and stabilise the gradient as doors open and close.

Humidity is a Gulf-specific challenge

Temperature control is only half the job. Coastal Gulf air can be very humid while inland air is bone-dry, and cleanrooms typically target a controlled band (often around 45-55% RH, application-dependent). Holding that band in summer usually means over-cooling the air to wring out moisture, then reheating it to the setpoint — a process that consumes energy but is essential to prevent condensation, electrostatic problems in dry conditions, and microbial risk in damp ones. Desiccant dehumidification is sometimes added where very low humidity is required. Door discipline, tight envelope sealing and well-designed airlocks all help the HVAC hold both pressure and humidity stable.

Energy Efficiency Without Compromising Compliance

In the Gulf, cleanroom HVAC can dominate a facility's electricity bill because the system runs continuously against extreme outdoor conditions. The engineering challenge is to cut energy use without ever dropping below the validated cleanliness, temperature, humidity and pressure requirements. Several strategies do exactly that:

• Right-sized air changes: As above, validating the true ACH the room needs — rather than over-specifying — directly reduces fan and conditioning energy.
• Energy recovery: Recovering coolth (and dryness) from exhaust air to pre-treat hot incoming fresh air reduces the cooling load, with careful design to avoid cross-contamination.
• Variable air volume (VAV) and setbacks: Reducing air changes during unoccupied periods, where the cleanliness standard and protocol permit, saves energy while protecting the cleanroom at rest.
• High-efficiency, low-pressure-drop filters: Lower-resistance media at the same efficiency class means less fan power for the same protection — and clean pre-filters keep the whole train efficient.
• Insulated, low-leakage envelope: A tight building shell with quality panels reduces solar and infiltration load, so the HVAC works less to maintain conditions.

The most important principle: energy savings must be proven not to compromise the cleanroom. Any setback strategy is validated so the room recovers to its class within a defined time. Designed and commissioned this way, a desert cleanroom can be both compliant and genuinely efficient. Talk to us about a climate-tuned design via our services page or request a quote.
